Main Features

•60 cm Wall-type Double Stage Chimney Hood
•Electronic Control
•3 Speed
•2×2 Watt LED Spots
•Aluminum Filter
•150 mm Air Outlet
•Double Chimney
•Filter Saturation Indicator
•Auto Shut Down Timer
•Noise Level: min 57dB-max 67dB
•DIN EN 61591 min 198m³/h-max 482m³/h)
•Energy Class: D
•Free Flow Extraction Power: 550 m³/h-180 Watt
•Package Dimensions (WxDxH): 68x51x62

Optional Features

•Carbon Filter Set
•90 cm Width
•850 m³/h-230 Watt+5 Speed Motor+B class
•900m³/h- Ultra Silent motor 200 watt+A class

Categories: ,

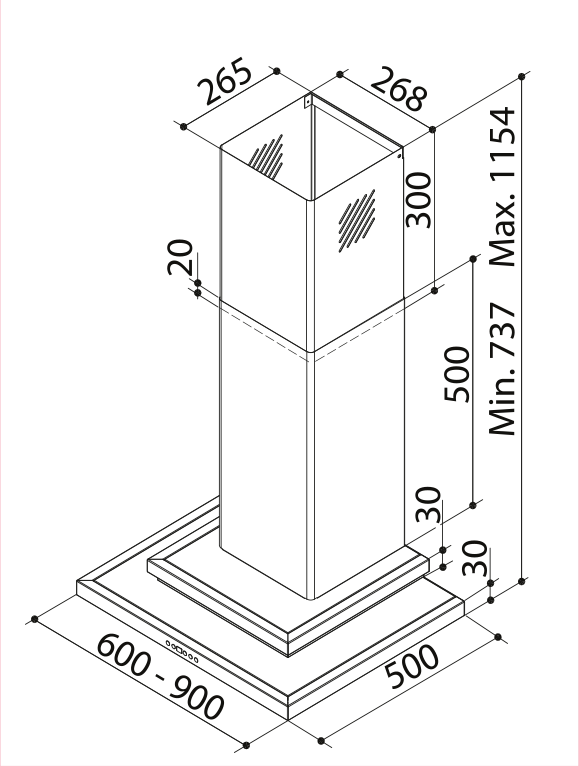

Technical Drawings
